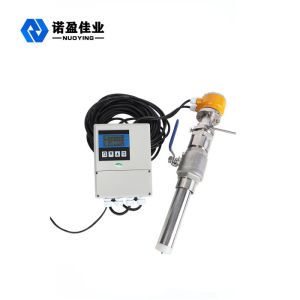

316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter

316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Description:

316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Parameters:

			Pipe size	DN100-DN3000
			Pressure	0.6~1.6MPa
			Temperature	-25~80℃
			Lining	ABS, PTFE
			Electrode material	316L, titanium, tantalum, platinum-iridium alloy, Hastelloy B, Hastelloy C
			Power supply	85~265VAC,24V DC,3.6VBattery powered
			Output	4-20MA, pulse, frequency, RS485, MODBUS, HART
			Protection level	IP65,IP67,IP68
			Accuracy	1.0%FS,1.5%FS
			Display	LCD

316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Working principle:

The measuring principle of electromagnetic flow meter is based on the electromagnetic induction law of Farady. The sensor is mainly composed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pair of coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.

316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Working Features:

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
